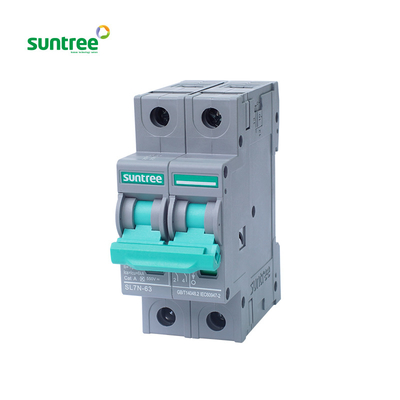

SL7N PV Series Circuit Breaker | SL7N-63 | ||||||
Frame degree rated current (A) | 63A | ||||||
Ue Rated operating voltage (V DC) | DC 550V | DC 800V | DC 1000V | DC 1200V | |||
Rated Current In (A) | 6-10-16-20-25-32-40-50-63 | ||||||
Rated insulation voltage Ui (V DC) | 2P: 800V 4P:1200V | ||||||
Rated Impact voltage Uimp (kV) | 4 | ||||||
Ultimate breaking capacity lcu (kA) | 6 | 6 | 6 | 6 | |||
Run breaking capacity lcs (%lcu) | 75% | 75% | 75% | 75% | |||
Curve type | C | ||||||
Trip type | Thermal-magnetic | ||||||
MECHANICAL | 20000 | ||||||
8500 | |||||||
ELECTRIC | 2500 | ||||||
1500 | |||||||
Shunt release (SHT) | Option | ||||||
Undervoltage release (UNT) | |||||||
Auxiliary contact (AX) | |||||||
Alarm contact (AL) | |||||||
Wiring capacity (mm²) | In≤32A,1∼25mm²,1≥40A,10∼35mm² | ||||||
Ambient temperature (℃) | -20∼70 | ||||||
Altitude | ≤2000 | ||||||
Relative humidity | ≤95% | ||||||
Pollution Level | 3 | ||||||
Installation Environment | No obvious shock and vibration | ||||||
Installation category | Class lll | ||||||
Installation | DIN Standard rail | ||||||
